HGM-BZ60M Intelligence High Accuracy Miniaturized Metal Mirror Gloss Meter

HGM-BZ60M Intelligence High Accuracy Miniaturized Metal Mirror Gloss Meter
HGM-BZ60M Intelligence High Accuracy Miniaturized Metal Mirror Gloss Meter HGM-BZ60M Intelligence High Accuracy Miniaturized Metal Mirror Gloss Meter

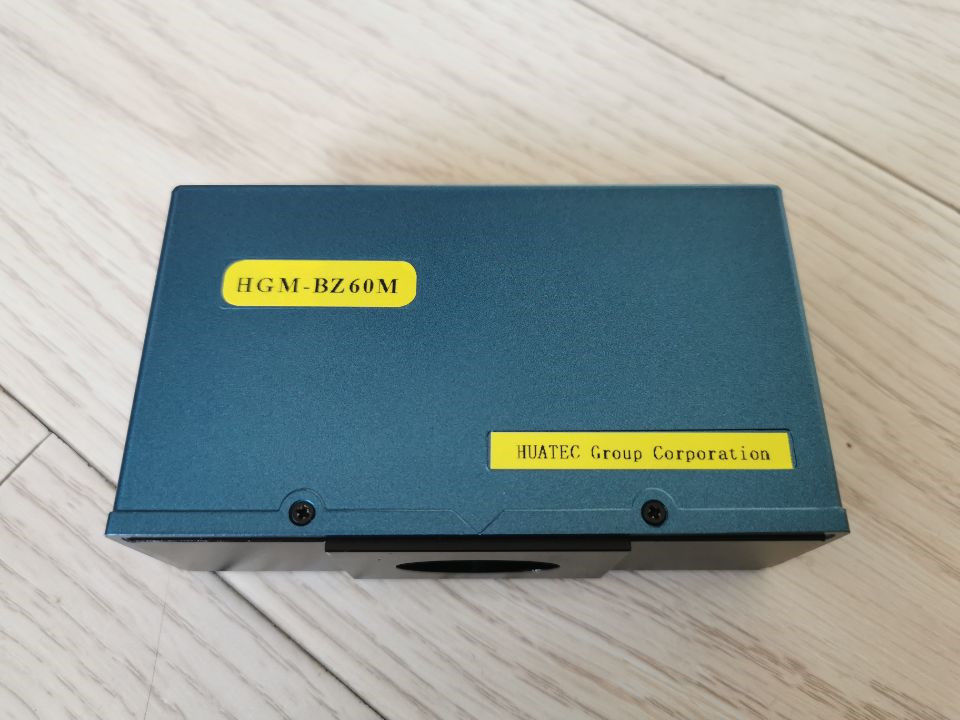

Grande immagine :  HGM-BZ60M Intelligence High Accuracy Miniaturized Metal Mirror Gloss Meter

Dettagli:
Luogo di origine: CINESE
Marca: HUATEC
Certificazione: CE
Numero di modello: HGM-BZ60M
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 set
Prezzo: USD520-USD600/SET
Imballaggi particolari: Imballaggio di plastica duro nero del cartone di box+Outer
Tempi di consegna: 3-5 giorni lavorativi dal ricevimento del pagamento
Termini di pagamento: T/T, Western Union, Paypal
Capacità di alimentazione: 10 SET/mese

HGM-BZ60M Intelligence High Accuracy Miniaturized Metal Mirror Gloss Meter

descrizione
Gamma dell'esposizione: 0.0-119.9,120-1000 Gu errore dell'esposizione: 0.0-119.9<1 Gu,120-1000<1% Gs
Stabilità: 0.0-119.9 < 0,4 Gu/30 min,120-1000 Gu < 2 Gu/30 min punto di misura: 14×48 mm) ellisse
Dimensione: 114 × 35 × 65 (mm) Fornitore di energia: 4.8V (batteria ricaricabile dentro)
Evidenziare:

Metal mirror Gloss Meter

,

Miniaturized Metal mirror Gloss Meter

,

High Accuracy mirror Gloss Meter

HGM-BZ60M Intelligence High Accuracy Miniaturized Metal mirror Gloss Meter



1.Reference standard and applicable scope

HGM-BZ60M. The intelligence gloss meter executive the ISO-2813,ISO-7668,GB8807standard which is the high accuracy, the miniaturized intelligence gloss meter.



2.Application

●All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc.
●Decorative materials, such as marble, granite, polishing brick, ceramic tile and so on.
●The other kinds of materials and objects, such as plastic, woodenware, paper, etc.



HUATEC Gloss meter Reference angle for different application

Angle Point of reference for (foreign) (China)

Application









20°

DIN-67530

ISO-2813 GB9754

ASTM-D523

ASTM-D2457 GB8807

high gloss paint, ink, plastic.



20°

ASTM-D1834

TAPPI-T653 GB8941.1

high gloss stencil, cast coated paper.



45°

ISO-2767 GB8941-2 surface of aluminum and aluminum oxide.
45°

ASTM-C346 GB/T3295

ASTM-D2457 GB8807

pottery, ceramic, plastic, plastic film, Stone
45° JIS-E8741 pottery, ceramic, plastic, plastic film, Stone





60°

ISO-2813 GB9754

ASTM-C584 GB9966

ASTM-D523

DIN-67530

ASTM-D2457 GB8807

Mid-gloss paint, ink, plastics, ceramics, stone.





75°

ISO-8254

TAPPI-T480 GB8941.3

copperplate paper
85°

ISO-2813 GB9754

DIN-67530

ASTM-D523

high gloss paint, ink, plastic.





3.Technical parameter

The technical parameters up to JJG 696 (First-level standard).

(1)display range of:0.0-119.9,120-1000 Gu

(2)display error:0.0-119.9<1 Gu,120-1000<1% Gs

(3)stability:0.0-119.9 <0.4Gu/30min,120-1000 Gu <2Gu/30min

(4)measurement spot:14×28(mm)ellipse

(5)dimension:114×35×65 (mm)

(6)power supply:4.8V (Rechargeable battery inside)



4.Features
1. Small and light, real easy to be carried and used.
2. 4.8V Rechargeable battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing forever.
5. Quartz crystal standard board, no excursion.

6. Single-chip microcomputer control circuit, the new keystrokes, light and portable, a single calibration, intelligent calibration record values



Standard Delivery

Gloss meter 1pc
Instrument case 1pc
Standard board

2pc

A black board is used for the highlight calibration

A white board is used for the low light calibration

Battery charger 1pc
English instruction manual 1pc
Calibration certificate 1pc
