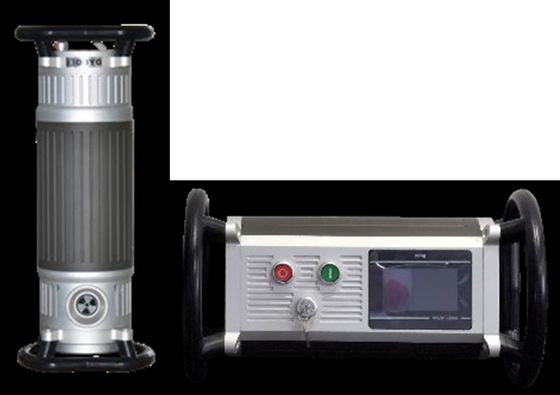

XXG-H300GP High Vlotage X Ray Constant Potential Flaw Detector

XXG-H300GP High Vlotage X Ray Constant Potential Flaw Detector

General features:

*Continuous exposure is possible at 35 ℃ and 300kv/3mA conditions;

*Wide input voltage range, suitable for power supply of various generators;

*Lightweight, strong penetration, and stable performance;

*The controller adopts a cylindrical design with unique creativity;

*The operation interface is intuitive and easy to operate;

*High penetration ability: Max.70mm
*High power efficiency, can be 95%,small cable diameter and light weight.
*Can continuously work99 minutes, no rest time, improve the work efficiency to a large extent
*Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 70mm due to different expose time setting. Better image clarity.
*High frequency design will reduce most of fault because it do not have high voltage coil.
*Can work with DR image system directly.

Technical Specifications

The whole machine features: high frequency, low Ma, continuous work. Wide range hardware design has long life and very low failure rate

Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head

The maximum penetration force: 60mm (F600, D > 2)

Random spare parts

10 core signal connecting cable

2 core power cable

A ground line

A set of Appendage package

The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
